10 steps to ensure that your building envelope performance remains high

Good building envelope detailing is crucial for ensuring the longevity, energy efficiency, and comfort of a building structure. The building envelope separates the interior from the exterior and is essential for controlling the flow of air, moisture, heat, and sound. Here are the essentials for a good building envelope detail:

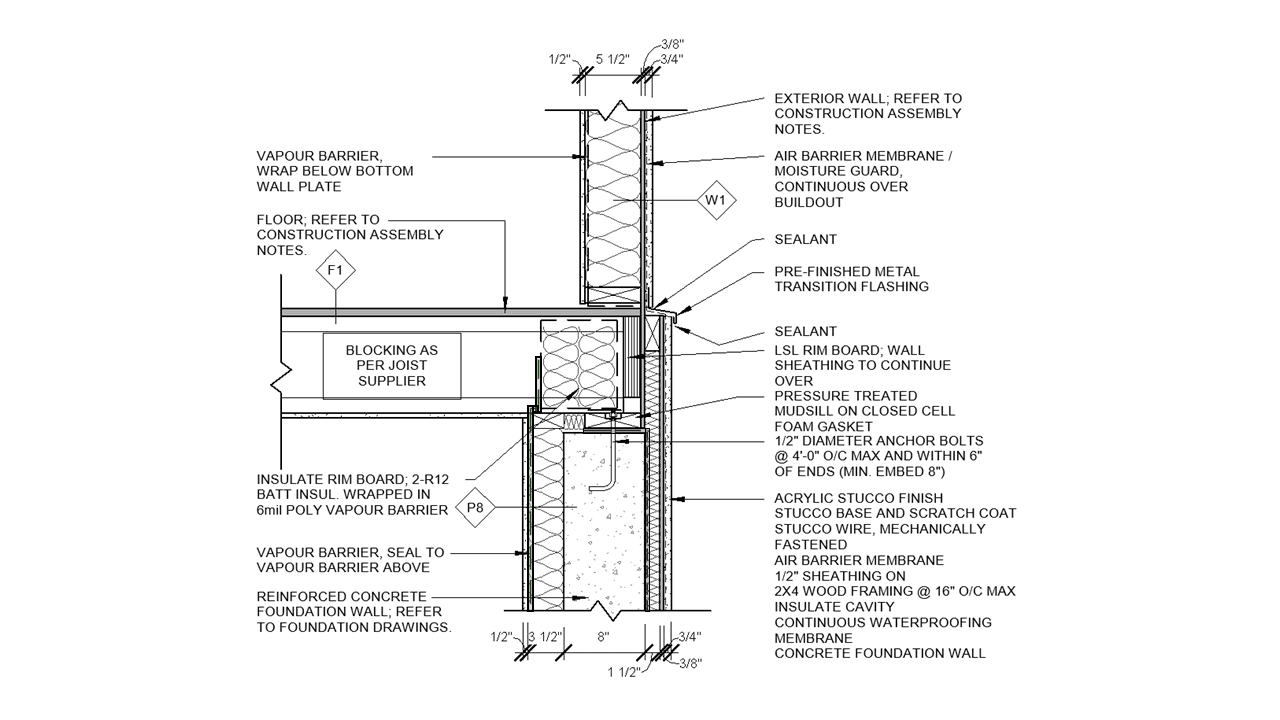

1. Air Barrier

An effective air barrier system is crucial for energy efficiency and overall building performance. By enveloping conditioned spaces with a durable and continuous air barrier, you can minimize air leakage through joints, cracks, and other small openings commonly found in the building envelope, such as around windows, doors, and service penetrations. By reducing unwanted air infiltration and exfiltration, air barrier systems help maintain consistent indoor temperatures, which decreases the need for heating and cooling. This leads to significant energy savings over time. A continuous air barrier prevents moisture-laden air from entering wall cavities and other areas, reducing the risk of condensation, which can lead to mold growth and structural damage. By controlling the pathways through which air can enter or escape the building, air barriers can help block contaminants like dust, pollen, and other pollutants, leading to better indoor air quality. With reduced drafts and temperature fluctuations, occupants experience a more comfortable living or working environment.

For optimal performance, it's important that the air barrier is properly installed with attention to detail, ensuring continuity across all surfaces and proper sealing at joints and penetrations. Combining the air barrier with insulation and vapor barriers can further enhance the building's overall thermal and moisture performance.

•  Continuous Seal: Ensure a continuous air barrier around the entire building envelope, including walls, roof, and foundation. Gaps or breaks in the air barrier can lead to air leakage, which reduces energy efficiency and can cause moisture problems.

•   Durability: The air barrier should be durable and able to withstand pressure differences, wind, and the movement of building components.

2. Thermal Barrier (Insulation)

It should be noted that there are challenges of using low-density insulating materials in construction. While these materials are effective in reducing thermal conductivity, their low density makes them fragile, unattractive, and prone to damage. Additionally, foam plastic insulation poses risks such as combustibility, toxic gas emissions when burned, and degradation from UV exposure. To mitigate these issues, KHA typically design building assemblies where insulation is sandwiched between protective exterior and interior layers, ensuring both durability and aesthetic appeal.

The selection of insulating materials in building design is a critical task that involves balancing several factors. The thermal resistance, or R-value, of an insulating material indicates its effectiveness in resisting heat flow. Higher R-values suggest better insulating properties. However, the R-value varies not only with the type of material but also with the material's specific formulation, density, and the temperature at which the measurement is taken.

You must choose insulating materials that meet the required thermal resistance within the physical space constraints of the building. For instance, phenolic foam might provide a much higher R-value per inch than lightweight concrete, meaning you can achieve the same insulation with less material thickness, which is particularly valuable in space-limited designs.

The process involves analyzing the thermal resistance values from a range of materials and determining which option best fits the design requirements, considering factors such as space, budget, and sustainability goals. This selection is crucial for ensuring energy efficiency, occupant comfort, and compliance with building codes.

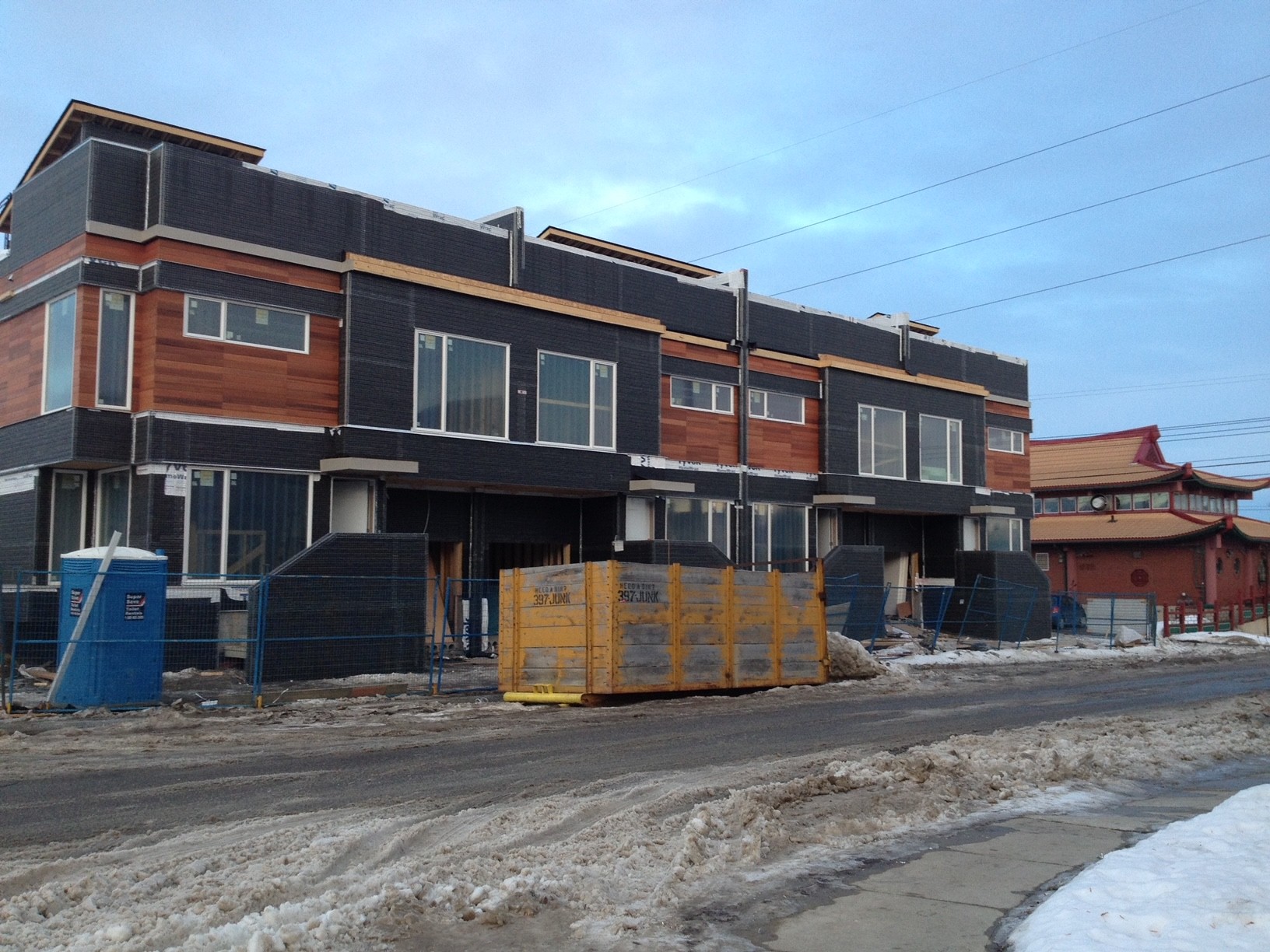

• Continuous Insulation: Insulation should be continuous across the entire building envelope, with no thermal bridges. Common thermal bridges include wall studs, window frames, and other structural elements that can conduct heat.

•  Correct Installation: Proper installation is key. Gaps, compression, or voids in insulation reduce its effectiveness.

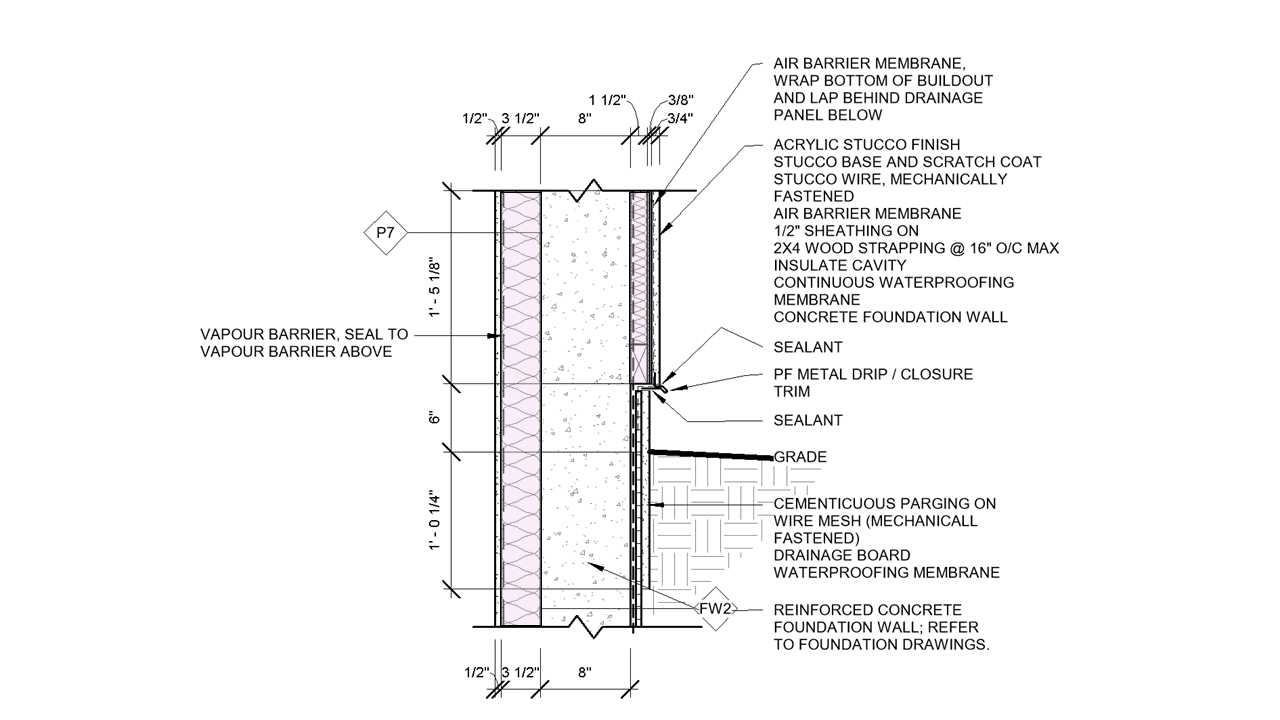

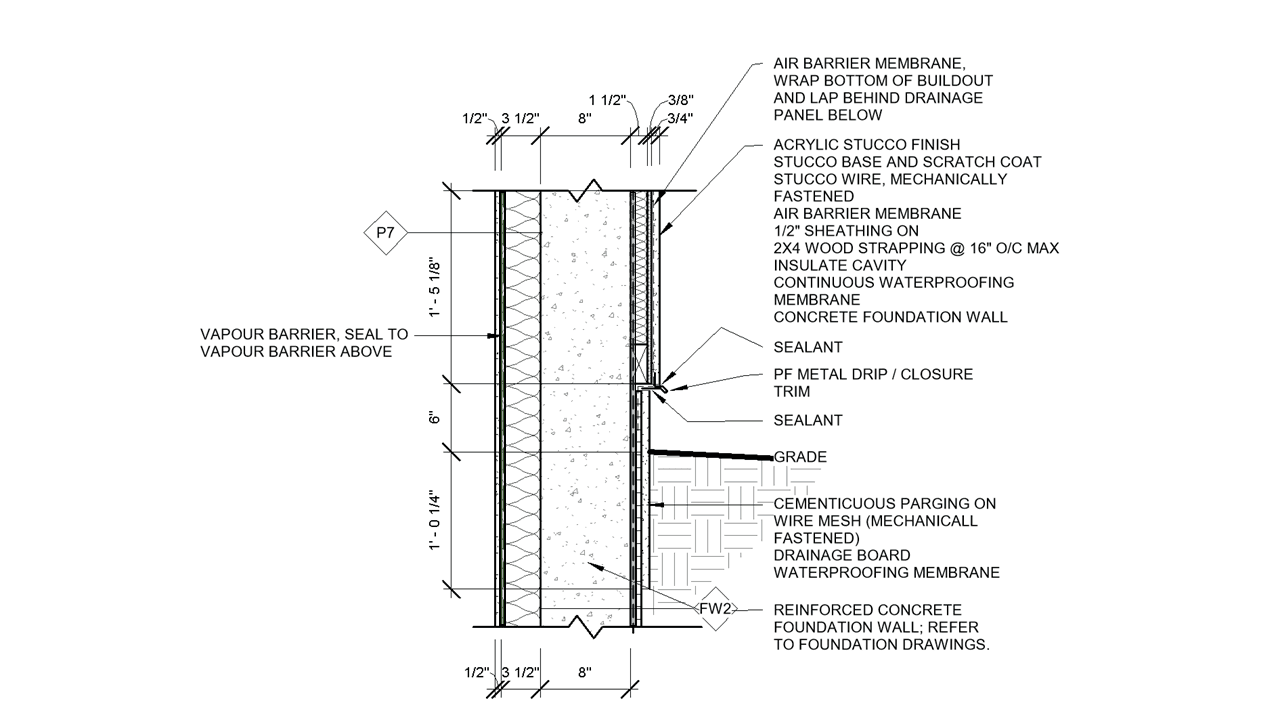

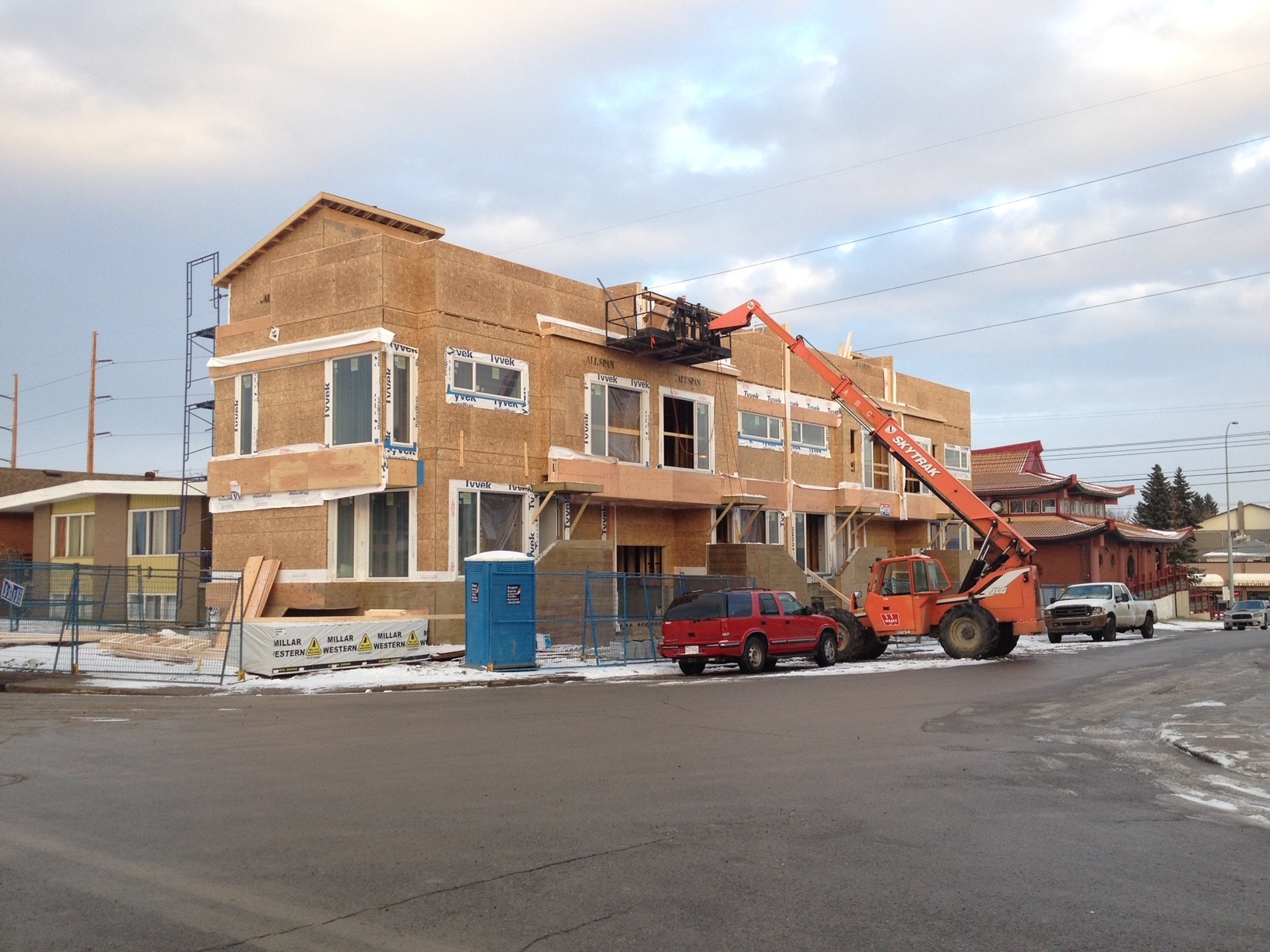

3. Moisture Barrier (Weather Barrier)

Exterior building materials like wood, concrete, stucco, and masonry are permeable, meaning they can absorb water and allow it to migrate through the assembly. To prevent moisture from causing damage or creating issues like mold, various strategies can be employed.

Creating a gap or cavity between the exterior material and the interior structure allows any moisture that penetrates the outer layer to drain away or evaporate. This cavity prevents moisture from reaching the inner structure. Using materials like a vapor barrier or waterproof membrane can stop moisture from penetrating through the assembly. These barriers are typically installed behind the exterior cladding and in areas prone to water exposure. Often, both a cavity and an impermeable barrier are used together for added protection. The cavity allows for drainage and air circulation, while the barrier provides a secondary line of defense.

Proper moisture management is crucial for the durability and longevity of a building, as well as for maintaining healthy indoor air quality.

•  Waterproofing: Protect the building from rain and groundwater infiltration. Ensure flashing and sealants are properly installed around windows, doors, and other penetrations.

• Vapor Control: Manage vapor diffusion through the use of vapor barriers or retarders, depending on the climate zone and the building's moisture management strategy.

•   Drainage Plane: Incorporate a drainage plane to direct water away from the building, reducing the risk of water intrusion.

4. Durability and Material Compatibility

•   Material Selection: Use materials that are durable and compatible with each other to avoid degradation or failure over time.

• Movement Accommodation: Account for building movement due to thermal expansion, settlement, or other factors. Proper joint design and flexible sealants can accommodate movement.

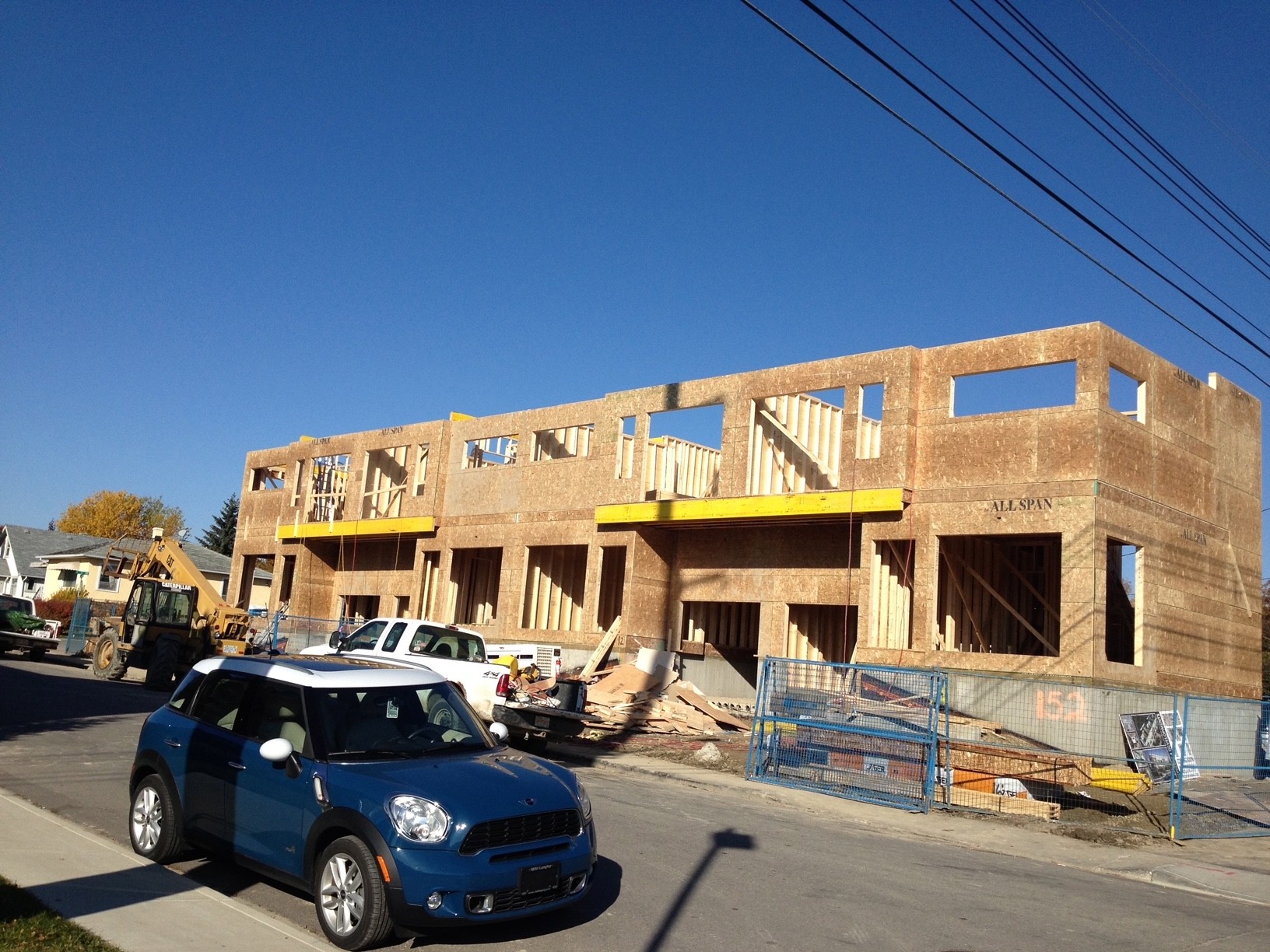

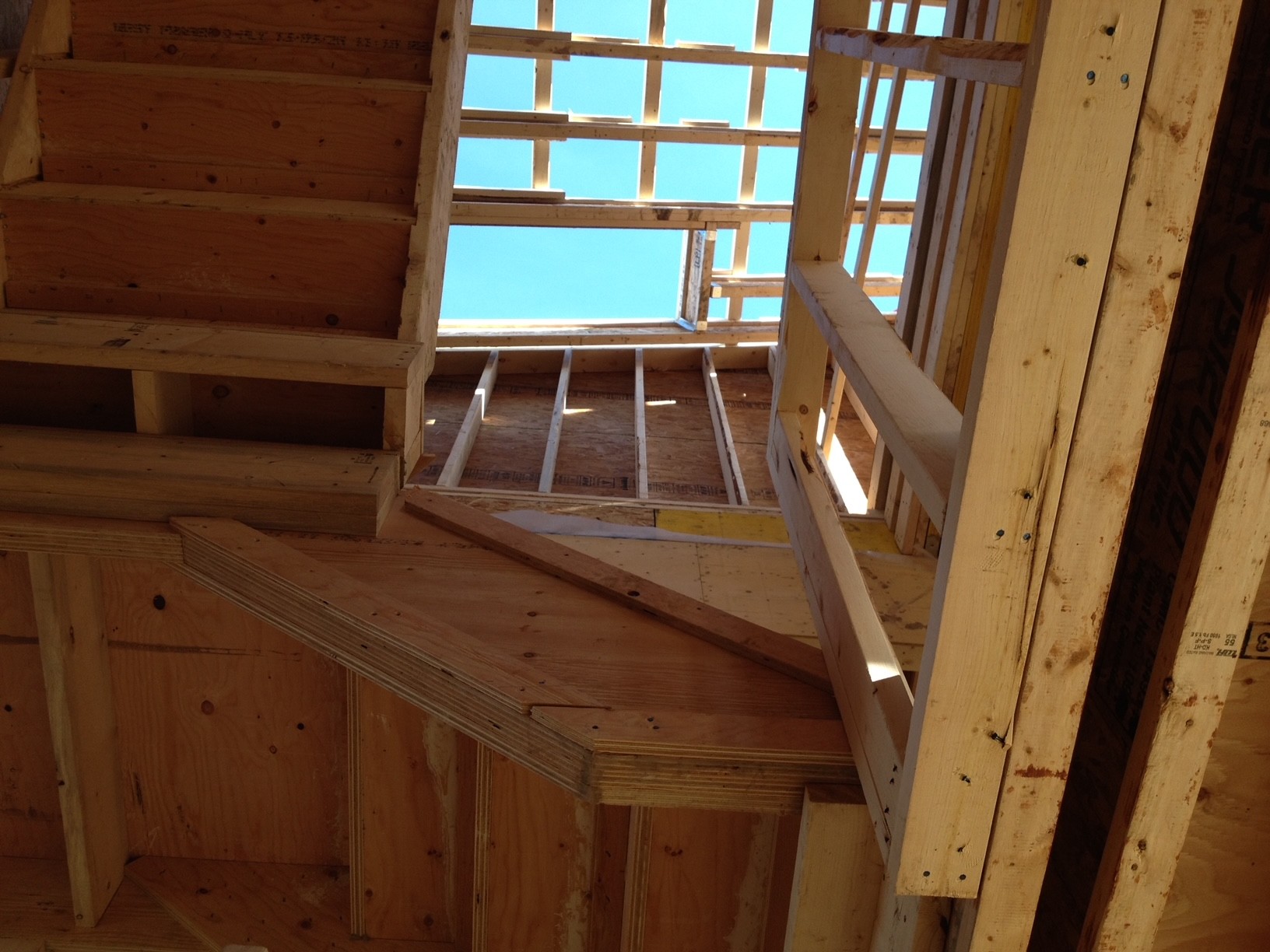

5. Structural Integrity

• Load Resistance: The building envelope should support and transfer loads, including wind, snow, and seismic forces, without compromising its thermal, air, and moisture control layers.

• Connection Details: Ensure strong connections between different components, such as between the roof and walls or walls and foundation.

6. Energy Efficiency

• Minimize Thermal Bridging: Design to minimize thermal bridges that reduce energy efficiency.

• Air Tightness: A well-sealed envelope reduces energy loss and improves comfort by minimizing drafts and preventing conditioned air from escaping.

7. Fire Resistance

•   Fire-Rated Assemblies: Use fire-rated materials where required to prevent the spread of fire and smoke through the building envelope.

8. Acoustic Control

• Sound Insulation: Design the envelope to reduce the transmission of noise, particularly in urban areas or near noisy environments.

9. Maintenance and Accessibility

•   Ease of Maintenance: Design for easy access to components that may require inspection, repair, or replacement.

• Long-Term Performance: Consider the longevity of materials and systems, planning for the building’s lifecycle.

10. Sustainability

• Eco-Friendly Materials: Use sustainable, non-toxic, and recyclable materials whenever possible.

• Energy-Efficient Design: Ensure the envelope supports the overall energy efficiency goals of the building.

In summary, a good building envelope detail requires careful consideration of air, thermal and moisture control, as well as durability, structural integrity, and energy efficiency. All elements must work together to create a comfortable, sustainable, and resilient building.

To find out more on how you can improve your buildings envelope performance, reach out to KHA for your project consultation, we would be happy to assist you on your up and coming venture toward a successful project execution.
